1. Depending on the application scenario, select taper pins made of different materials and hardness levels;
2. The taper pin bears shear force as a whole. Hardening allows it to withstand greater shear force, but may risk damaging the mating part;
3. Maximum surface roughness for ground taper pins is 0.8;
4. Maximum surface roughness for turned or cold-headed taper pins is 3.2;

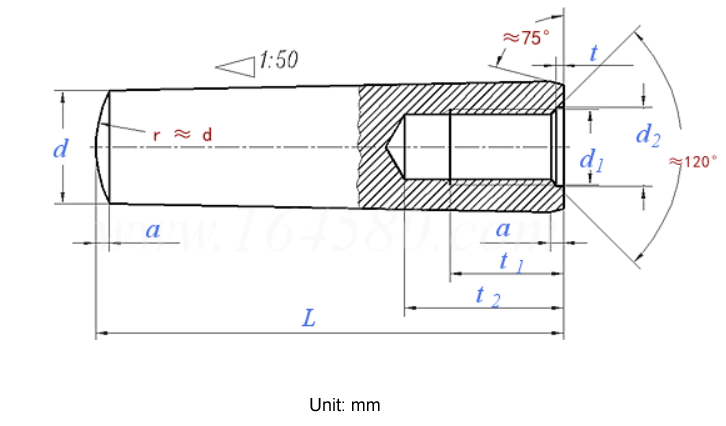

5. Taper pins with internal thread are mostly used for blind hole structures.

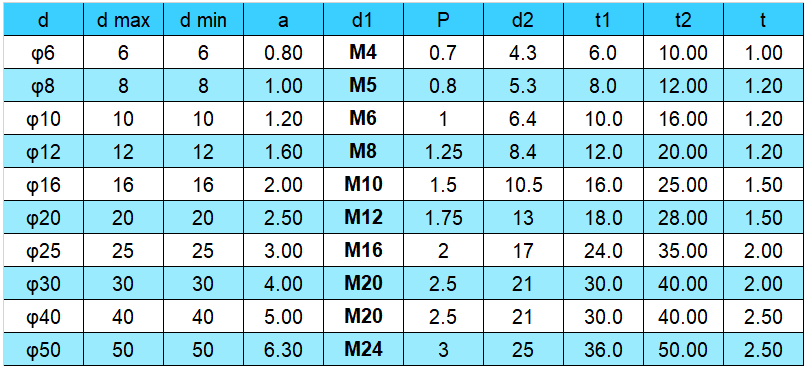

Diameter d: φ6-φ100
Nominal Length L: 10-300mm
